Honda K20 (Off-Set) Starter + Flywheel Kit

Starter Motor Kits
Written By Ark Racing Limited

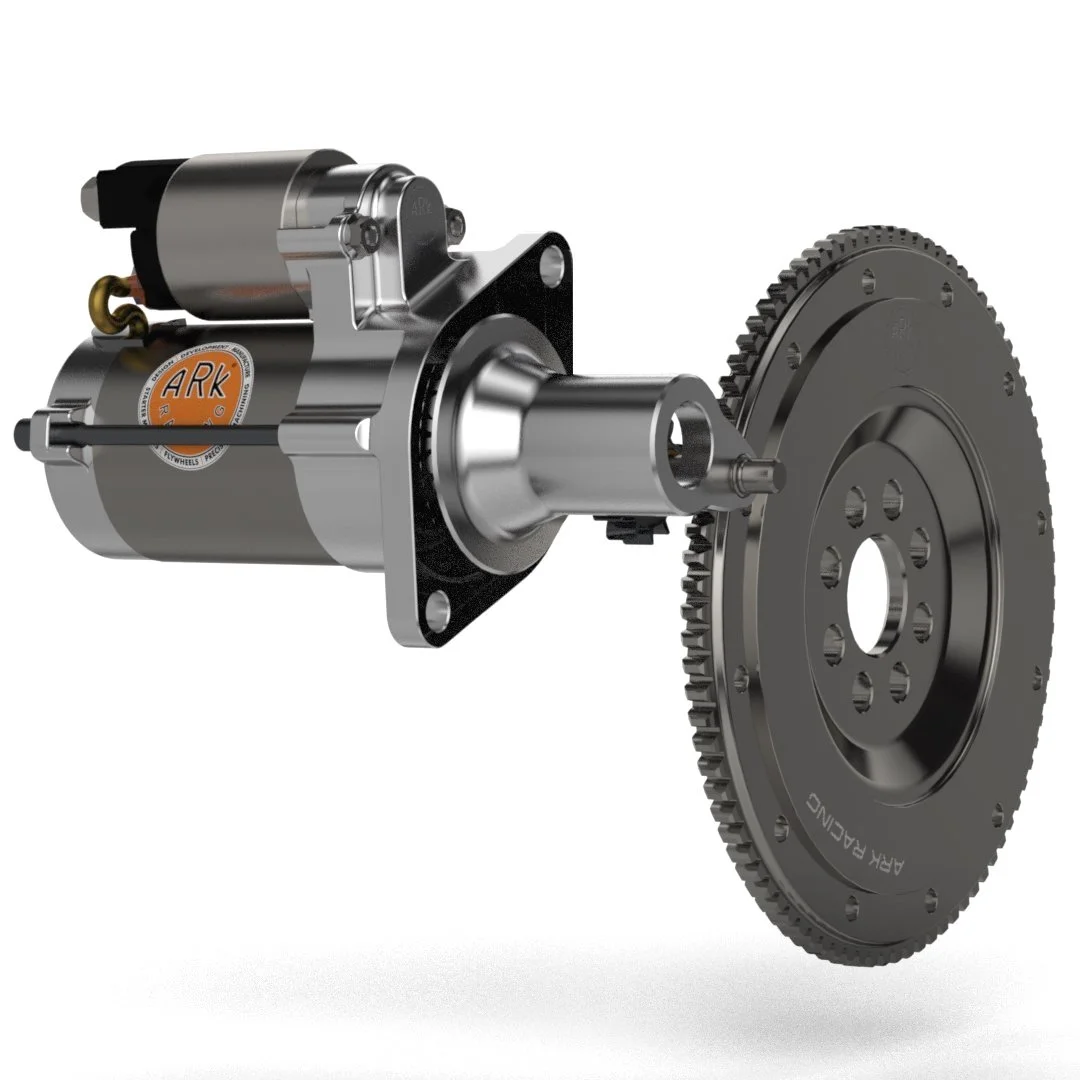

Ark Racing® Honda K20 Off-Set Starter Motor and 90T Flywheel Kit, designed, developed and manufactured in-house at our Ark Racing Limited. It is made to the highest standards using high-grade steel and aluminium.

Developed and made to professional motorsport standards, providing excellent starting performance, endurance and reliability for today's driver. With a power rating of 1.7kW (Japanese International Standard), (12 Volts).

There are two flywheels to choose from depending on the setup 5.5” or 7.25” Clutch, please contact to confirm.

Suitable for: Honda K20 +K24 Engine

Specification Starter:

Material: Steel Casing / Aluminium Adapter Plate
Kilowatts: 1.7 kW (J.I.S)
Voltage: 12 Volts
Outer Pinion Gear (Idler): 13T
The direction of rotation (D.O.R.): CW

Specification Flywheel:

7.25” Flywheel mass: 2.48 Kg (5.46 lb)
5.5” Flywheel mass: 1.82 Kg (4.01 lb)
OD (Outside Diameter): ø233 mm

weight convertor icon image Mass Convertor

Ark Racing® designs, develops and manufactures bespoke high-quality starter and flywheel kits for other engines.

If you can’t find what you’re looking for, contact us.

Ark Racing can create a solution to meet your requirements.

Call us on +44 (0)345 557 7408 or complete our online contact form.

“Ask about our
Rebuild/Servicing Package”

Ark Racing Limited

We design, develop, and manufacture bespoke starter motor systems, high-quality flywheels, and provide precision machining for the professional motorsport industry.

Located in Willenhall in the West Midlands, we pride ourselves on delivering a professional service.

Established in 1968, Ark Racing® Limited provide a complete service, from concept to the finished product.

We also provide precision and sub-contract machining via our other website, www.arkcnc.co.uk.
